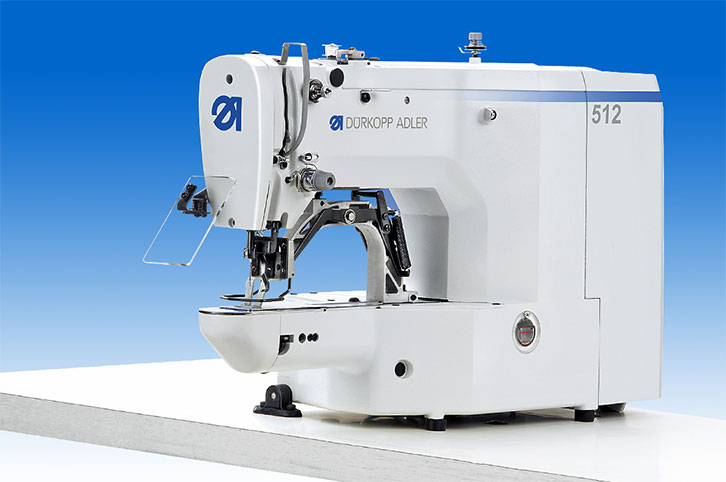

CNC-AUTOMATICSEWINGMACHINECL.512-212-01

CNC-controlled lockstitch bartacking machine with contraction clamp (clamp dimensions: 8,5mm x 3,5mm) especially for bartacking of buttonholes, for light to medium weight fabrics, scaling of pre-programmed patterns.
***
Equipped with:
· electronic controlled clamp foot lift
· thread trimmer
· thread wiper
· needle thread clamp below the needle plate for secured sewing start
· integrated DC direct drive with operation panel
· incl. bobbin capacity and piece counter

Product features:
· Oil free sewing head hook with fresh oil tank
· No compressed air required
· pattern transfer via USB flash drive
· stabiliser to balance electric voltage peaks
· pre-programmed patterns can be changed in length and height by steps of 1%
· sewing speed can be changed in 100 rpm steps
· memory capacity for 50 bar-tack variants and 25 sequences with up to 20 bar-tack variants
· max. speed 3.200rpm.

Nähmaschinenkopf: 0512-212-01 - 0512 990022 - CNC-controlled lockstitch bartacking machine with contraction clamp (clamp dimensions: 8,5mm x 3,5mm) especially for bartacking of buttonholes, for light to medium weight fabrics, scaling of pre-programmed patterns.
Montagekosten: 0512-212-01 - 0512 990012 ZM - Assembly cost
