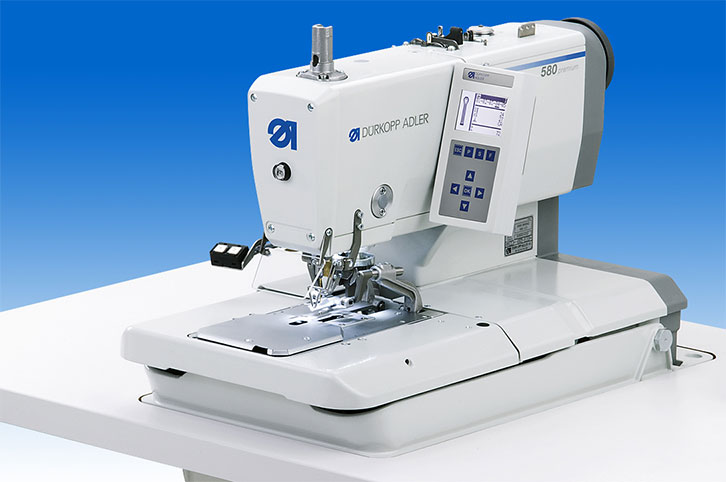

CNC-KNOPFLOCHAUTOMAT KL. 581-121
Automatic two thread chainstitch buttonholer with CNC step motor technology for the material feed and integrated DC sewing drive.
With lower gimp guide and gimp thread puller, trimmer for needle thread cut short, looper thread and lower gimp cut long, electro-pneumatic upper thread catcher and needle thread monitor. Control panel with graphic display.
***
With the DAC Comfort control (warranty 2 years) 50 buttonhole programmes can be programmed, e.g. with the following parameters: cutting before sewing, after sewing or without cutting, with taper bar, straight bartack or round tack, bartack length, with or without eyelet, stitch length in the lip, stitch length in the eye, throw width in the lip and in the eye, cutting space. Additionally equipped with suction device for fabric waste removal and switch for the most convenient threading position. Cut lengths up to max. 38 mm depending on the length package. Sewing speed up to 2.500 stitches/min. max. 25 sequences with up to 9 buttonhole programmes each can be programmed. With test and monitoring system "Multitest".
Rated voltage: 1 x 190 - 240V 50/60Hz,
Nähmaschinenkopf: 0581-121 - 0581 990002 - Automatic two thread chainstitch buttonholer with CNC step motor technology for the material feed and integrated DC sewing drive.
With lower gimp guide and gimp thread puller, trimmer for needle thread cut short, looper thread and lower gimp cut long, electro-pneumatic upper thread catcher and needle thread monitor. Control panel with graphic display.
Montagekosten: 0581-121 - 0580 990002 ZM - Assembly cost
