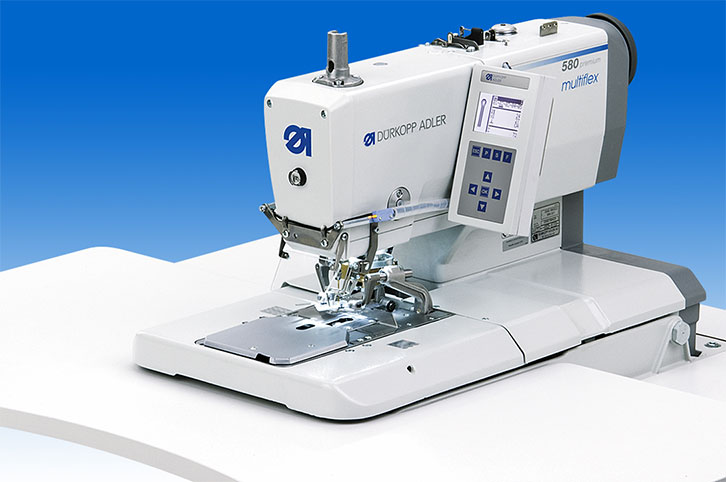

CNC-KNOPFLOCHAUTOMAT KL. 581-321

Automatic chainstitch buttonholer with CNC step motor technology for the material feed and integrated DC sewing drive. With fully automated cutting system "MULTIFLEX" for preprogrammed
sewing and cutting of different buttonhole lengths and shapes without changing the cutting tools.
With thread trimmer for needle thread cut short, looper thread and lower gimp cut long.
With lower gimp guide, electropneumatic upper thread catcher and needle thread monitor. Control panel with graphic display.
***
Equipped with DAC Comfort control (Guaranty on the control of 2 years). With the DAC Comfort 50 buttonhole programs can be programmed, e.g. with the following parameters: cutting before
sewing, after sewing or without cutting, with taper bar, straight bartack or round tack, bartack length, with or without eyelet, stitch length in the lip, stitch length in the eye, throw width in the lip and in the eye, cutting space.
Additionally equipped with electronical regulated needle thread tension, suction device for fabric waste removal and switch for the most convenient threading position. Cut lengths up to max. 38 mm depending on the length package.
Sewing speed up to 2.500 stitches/min. max. 25 sequences with up to 9 buttonhole programmes each can be programmed. With test and monitoring system "Multitest". Rated voltage: 1 x 190 - 240V 50/60Hz

Nähmaschinenkopf: 0581-321 - 0581 990006 - Automatic chainstitch buttonholer with CNC step motor technology for the material feed and integrated DC sewing drive. With fully automated cutting system "MULTIFLEX" for preprogrammed sewing and cutting of different buttonhole lengths and shapes without changing the cutting tools. With thread trimmer for needle thread cut short, looper thread and lower gimp cut long. With lower gimp guide, electropneumatic upper thread catcher and needle thread monitor. Control panel with graphic display.
Montagekosten: 0581-321 - 0580 990022 ZM - Assembly cost
