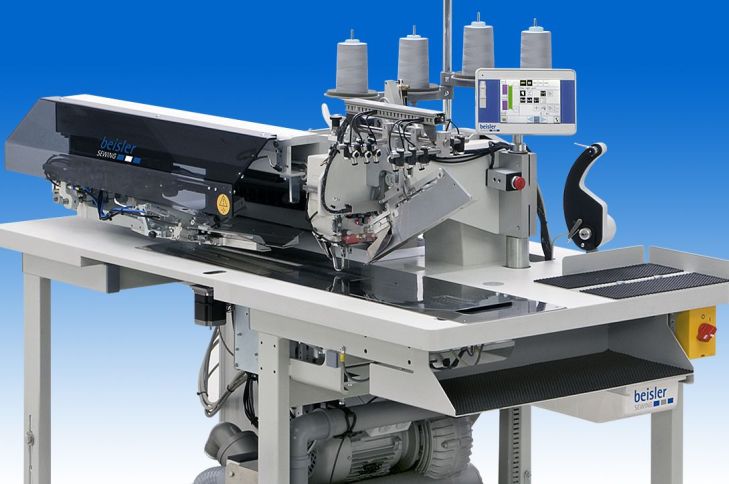

SEWING UNIT CL. 100 ? 69
Sewing unit for runstitching of rectangular (optional: slanted) piped pockets, flap pockets and welt pockets. Manual loading of pipings, flaps, facing or pocket bags. Touch screen for 99 pocket programs
***
Field of application: e.g. Trouser pockets, lining pockets, sportswear pockets, straight jacket pockets.
Other application possibilities (optional equipment required): Jacket breast welt pockets, zipper pockets
________________
Standard equipment:
? Touch screen panel with colour-graphic display, 99 pocket programmes and 20 sequences with up to 6 programs can be memorized.
All pocket parameter like programmable seam securing by back-tacking / condensed stitches, stitch length, sewing speed, feeding speed, cutting speed, operation cycle and pocket cycle are free programmable.
? DAC control including diagnostic program
? USB memory stick for data transfer
? Step motor controlled corner knife station
? separately driven middle knife system
? Small vertical hooks
? swivelling folding station
? 3 Laser-marking lamps (separately programmable)
? thread monitor for needle thread
? separately driven bobbin winder
? bobbin thread monitor
? racks for pocket bags on the right side and below the table
? height adjustable stand (table height 797 - 1076mm), without rolls
? airgun with hose
? pneumatic connection package
The feeding clamps can be separately lowered for smoothing out the material (programmable).
Pocket lengths depending on sewing equipment: 20-240mm (with added parts like flaps max 220mm).
Available needle gauges: 4,8-30 mm
Power rating: xxx (W)
Rated voltage: 1 x 230 V 50/60 Hz
Nähmaschinenkopf: 100-69 - B169 990001 - Sewing unit for runstitching of rectangular (optional: slanted) piped pockets, flap pockets and welt pockets. Manual loading of pipings, flaps, facing or pocket bags. Touch screen for 99 pocket programs
