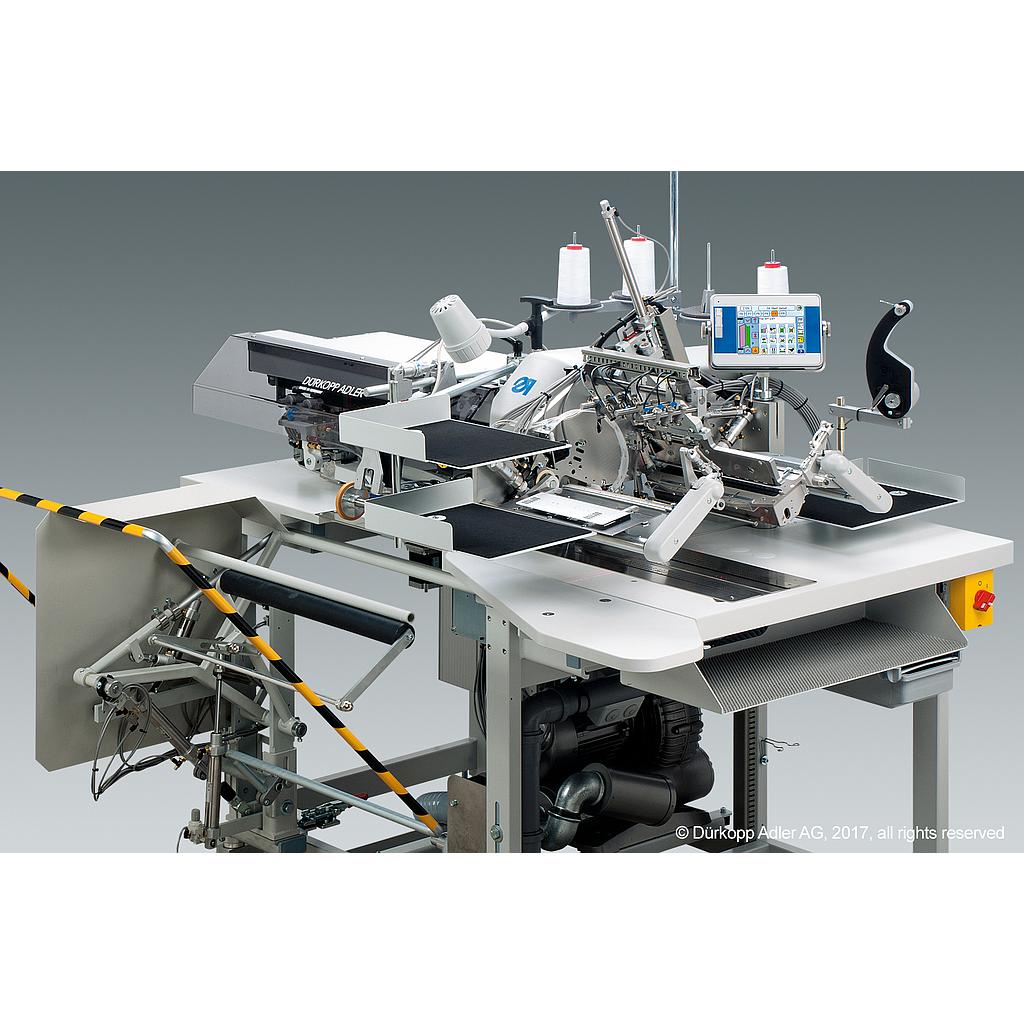

SEWING UNIT CL. 745-35-10 B
Sewing unit for runstitching of rectangular (optional: slanted) piped pockets, flap pockets and welt pockets. With automatic feeding device for piping strips. Optionally automatic feeding of flaps or pocket bags.
Optionally with incision of piping endings. Colour graphic display for 99 pocket programs
***
Field of application: e.g. Jacket pockets, trouser pockets, lining pockets
_________________
Standard equipment:
- Touchscreen OP 7000, 99 pocket programs and 20 sequences with up to 8 programs can be memorized.
All pocket parameter like programmable seam securing by back-tacking - condensed stitches, stitch length, sewing speed, feeding speed, cutting speed, operation cycle and pocket cycle are free programmable.
- DAC Comfort including diagnostic program
- USB-Stick for data transfer
- LED-Sewing Light incl. transfomer
- Step motor controlled corner knife station
- Lockstitch sewing head with light barrier for flap-length control
- separately driven corner knife
- Large vertical hooks
- swivelling folding station
- 5 Laser-marking lamps (individually programmable)
- thread monitor for needle thread
- separately driven bobbin winder
- bobbin thread monitor
- racks for pocket bags on the right side and below the table
- racks for small parts on the left side
- height adjustable stand (table height 797 - 1076mm), without rolls
- air gun with hose
- pneumatic connection package
- instant clamp adjustment
- suction device for better positioning of the material prepared to be connected to a central vacuum system or a vacuum blower (optional equipment).
- The feeding clamps can be separately lowered for smoothing out the material.
Pocket lengths depending on sewing equipment: 20-220mm
Available needle gauges: 10-20 mm
Power rating: xxx(W)
Rated voltage: 1 x 230 V 50-60 Hz
Nähmaschinenkopf: 0745-35-10 B - 0745 991033 - Sewing unit for runstitching of rectangular (optional: slanted) piped pockets, flap pockets and welt pockets. With automatic feeding device for piping strips. Optionally automatic feeding of flaps or pocket bags.
Optionally with incision of piping endings. Colour graphic display for 99 pocket programs
