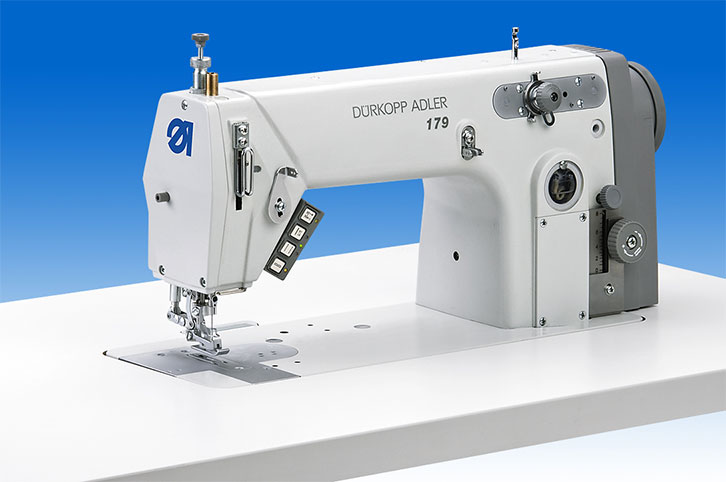

SPECIALSEWINGMACHINECL. 179-171629
Single needle single thread-chain-stitch machine with bottom- and differential top feed for basting operation with thread trimmer, sewing foot lift, stitch condensation, and integrated DC sewing drive
***
With electropneumatic functions for thread trimmer, stitch-condensation and sewing foot lift, key for needle up / down, manual stitch condensation within the seam, calling up or eliminating stitch condensation, two dials with scales for flat sewing or ruffling respectively fullness, integrated DC positioning drive and motor control.
Rated voltage: 1 x 190-240V 50/60Hz.
External control panels can be connected (optional equipment).
Stitch length up to 8 mm, top feed length up to 8 mm according to equipment.
Max. sewing speed 5000 stitches/min.
Additional information:
This machine requires a maintenance unit!
Nähmaschinenkopf: 0179-171629 - 0179 990002 - Single needle single thread-chainstitch machine (stitch type 101) with bottom- and differential top feed for basting operations, DAC control, operation panel, 4-piece push-button and integrated DC-motor (1x230V, 50/60Hz, 500W). Equipped with electro-pneumatic auto functions thread trimmer and sewing foot lift.
Montagekosten: 0179-171629 - 0179 990001 ZM - Assembly cost
