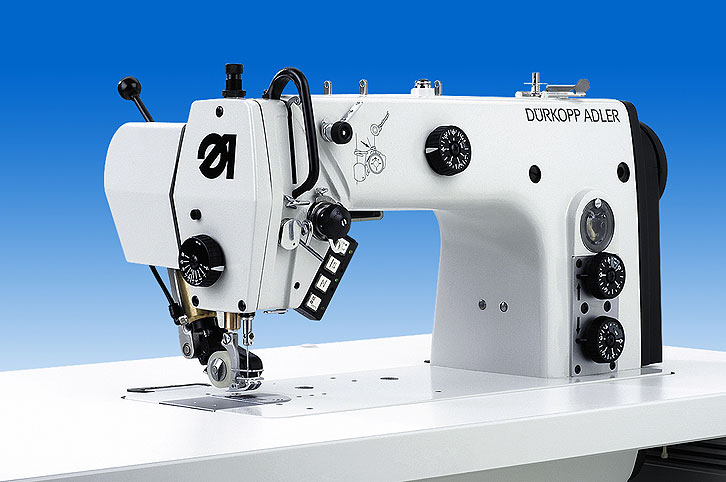

SPECIALSEWINGMACHINECL. 274-140342-01
Single needle lockstitch machine with bottom feed, needle feed and intermittent puller top feed, thread trimmer, sewing foot lift and seam backtacking, with thread retaining device for seam beginning and integrated DC positioning motor with operation panel and mounting bracket.
***
With small horizontal hook, with Kit 'height adjustment of the cloth presser foot' for high-pile material, can be fitted subsequently.
with push button for lifting and lowering the puller electropneumatically, needle position up/down, intermittent tacking, +1 stitch and elimination of seam backtacking, st
Stitch length up to 4 mm, Top puller feed adjustable up to a feed length of 7mm. Max. sewing speed 5.000 stitches/minute. Rated voltage190-240 V 50/60Hz.
Required equipment:
For the pneumatic functions the maintenance unit WE8 is required. (see "optional equipment")
Nähmaschinenkopf: 0274-140342-01 - 0274 990104 - Single needle lockstitch machine with bottom feed, needle feed and intermittent puller top feed, thread trimmer, sewing foot lift and seam backtacking, with thread retaining device for seam beginning and integrated DC positioning motor with operation panel and mounting bracket.
Montagekosten: 0274-140342-01 - 0274 990104 ZM - Assembly cost
