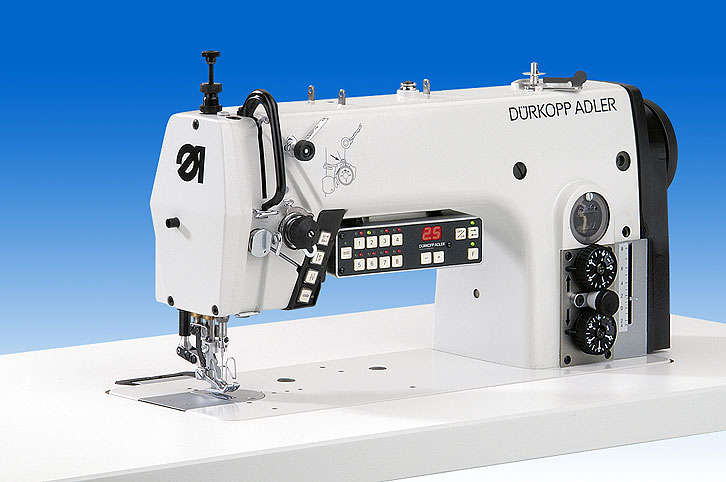

SPECIALSEWINGMACHINECL. 275-142342-01
Single-needle lockstitch machine with bottom feed and differential foot top feed, stepper motor controlled fullness, thread trimmer, sewing foot lift, seam back-tacking, with thread retaining device for seam beginning and integrated DC positioning drive with operation panel and mounting bracket.
***
With small horizontal hook, stepper motor-controlled fullness with up to max. 8 programmable fullness amounts, to be called up individually or by knee-lever within the cycle, electromagnetic functions for thread trimmer, seam back-tacking and sewing foot lift, key for back-tacking within the seam, calling up or eliminating seam back-tacking. Rated voltage: 1 x 190-240V 50/60Hz. Stitch length up to 4 mm, top feed length up to 8 mm according to sewing equipment. Max. sewing speed 5.000 stitches/min.
Required equipment:
For the pneumatic functions the maintenance unit WE8 is required. (see "optional equipment")
Nähmaschinenkopf: 0275-142342-01 - 0275 990116 - Single-needle lockstitch machine with bottom feed and differential foot top feed, stepper motor controlled fullness, thread trimmer, sewing foot lift, seam back-tacking, with thread retaining device for seam beginning and integrated DC positioning drive with operation panel and mounting bracket.
Montagekosten: 0275-142342-01 - 0275 990116 ZM - Assembly cost
